Inline Tube Fan
Metal RS Series

Inquiries are Welcomed

Contact Info


Quality, Performance Reliability and Durability are Assured by our three year warranty

The RS Series of Inline Tube Fans represents the ideal design unifying the advantages of axial fans, in-line air flow and ease of installation, with the high efficiency, high pressure stability, and low noise of the radial fan.

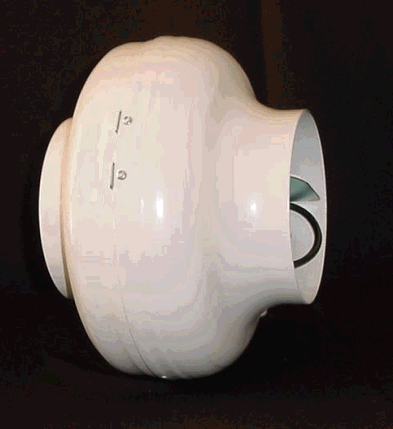

The RS Series with Powder Coated Steel Housing.


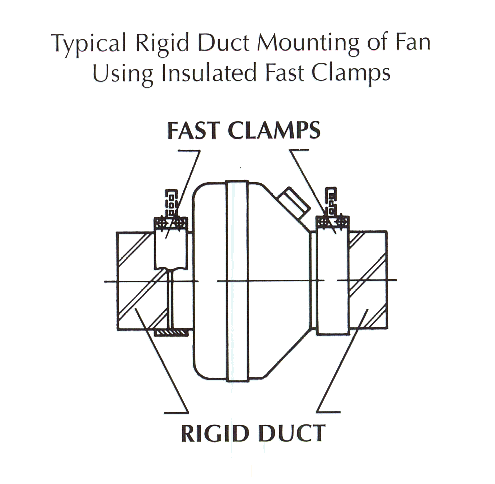

Designed to fit standard size Spiral Ducting.

Compact Space-Saving Design

Sizes : 4 inch, 5 inch, 6 inch, 8 inch
            10 inch and 12 inch

Motors are 100 % speed controlable through
Inexpensive electronic controls

Includes Backward Inclined Motorized Impeller

Exhaust - Supply - Boost




RS SERIES PERFORMANCE TABLE

  C.F.M vs Static Pressure
Model Duct
DIA
Input
Watt
Current
AMP
Voltage
VOLT
Freq.
HZ
0 .20 .40 .80 1.20 1.60 2.00 2.40 2.80 Fan
RPM
dB(A) MaxOper.
Temp
50/60 HZ
RS4L 4" 70 0.63 115 60 176 153 138 68 59 9 - - - 2445 64 80/40° C
RS5L 5" 72 0.65 115 60 206 171 144 97 50 - - - - 2305 65 80/40° C
RS6 6" 73 0.65 115 60 271 230 188 121 65 - - - - 2340 66 80/40° C
RS6L 6" 136 1.20 115 60 441 388 336 241 177 115 24 - - 2530 66 80° C
RS8 8" 125 1.09 115 60 494 441 397 283 191 115 24 - - 2620 69 80° C
RS8L 8" 255 2.20 115 60 736 677 624 500 371 283 206 135 35 2605 70 50/40° C
RS10 10" 131 1.14 115 60 524 471 424 303 206 115 15 - - 2610 68 80° C
RS10L 10" 250 2.20 115 60 783 736 665 530 400 300 224 141 35 2620 67 50/40° C
RS12 12" 248 2.16 115 60 830 795 730 597 465 350 238 141 44 2570 70 50/40° C
RS12L 12" 330 2.91 115 60 971 930 889 795 683 565 441 312 165 2940 70 60° C


DIMENSIONAL DATA

Model d D a b c
RS4L 3.93 9.68 8.18 5.98 1.10
RS5L 4.92 9.68 7.59 5.39 1.10
RS6 5.90 10.74 7.48 5.08 1.20
RS6L 5.90 13.52 9.08 5.08 1.20
RS8 7.87 13.62 9.17 6.77 1.20
RS8L 7.87 13.62 9.17 6.77 1.20
RS10 9.84 13.58 9.37 6.97 1.20
RS10L 9.84 13.58 9.37 6.97 1.20
RS12 12.40 15.90 9.96 7.56 1.20
RS12L 12.40 15.90 9.96 7.56 1.20
